FLAVIAspeed E-Bike Tuning - Bosch Smart System V2

Latest FLAVIAspeed tuning module for all E-bikes / Pedelecs with Bosch Smart System.


Specifically for:

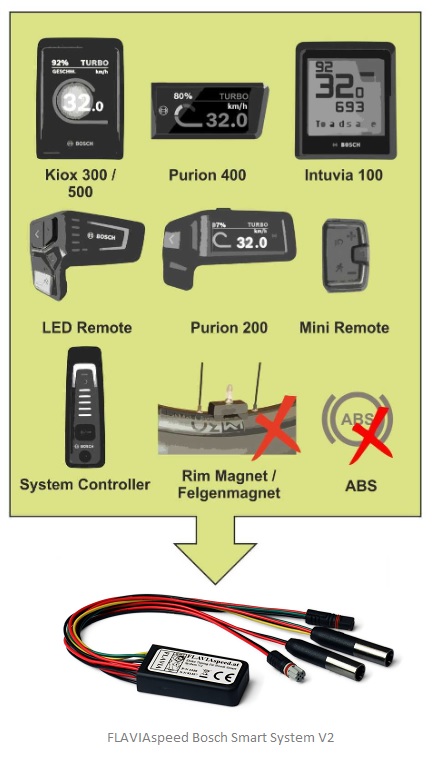

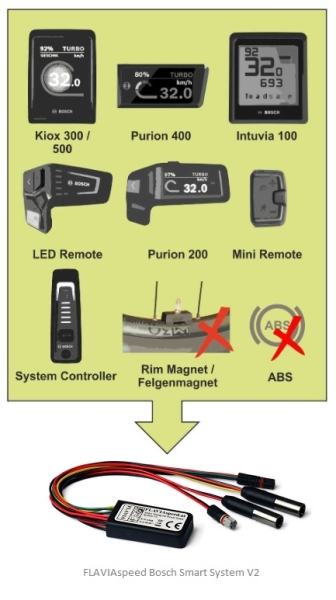

Bosch Performance Line, Performance Line CX and Cargo Line with displays KIOX 300, KIOX 500, Intuvia 100, and LED Remote, System-Controller, Purion 200, Purion 400 or MiniRemote.
Not compatible with Bosch displays Purion, Kiox, Intuvia, Nyon, Smartphone Hub!!! Not compatible with Bosch rim magnet!
Not suitable for Bosch with ABS system!

We recommend not to perform any new software updates once the module is installed and working perfectly, as the module is programmed for the current software version. It cannot be guaranteed that tuning will work properly after an update, as it is programmed for the current and older versions.

The following software versions have been successfully tested on the Bosch motors (All older versions are also compatible):

Active Line (Plus) Gen3 ab 2023: up to 17.16.0
Performance Line Gen3 ab 2023: up to 17.16.0
Performance Line CX Gen4 ab 2022: up to 17.16.0
Performance Line CX Gen5 ab 2025: up to 17.16.0
Cargo Line ab 2022: up to 17.16.0

Display

Purion 200: up to 17.19.3
Purion 400: up to 17.19.3
Intuvia 100: up to 1.1.71
Kiox 300: up to 17.19.3
Kiox 400c: up to 17.1.3
Kiox 500: up to 17.19.3
LED Remote: 10.12.3 up to 17.19.3
System Controller: 10.12.3 up to 17.19.3
Mini Remote: up to 1.1.20

Power Tube: bis 17.8.0

Connect Modul: up to 15.99.2
ABS: not compatible.

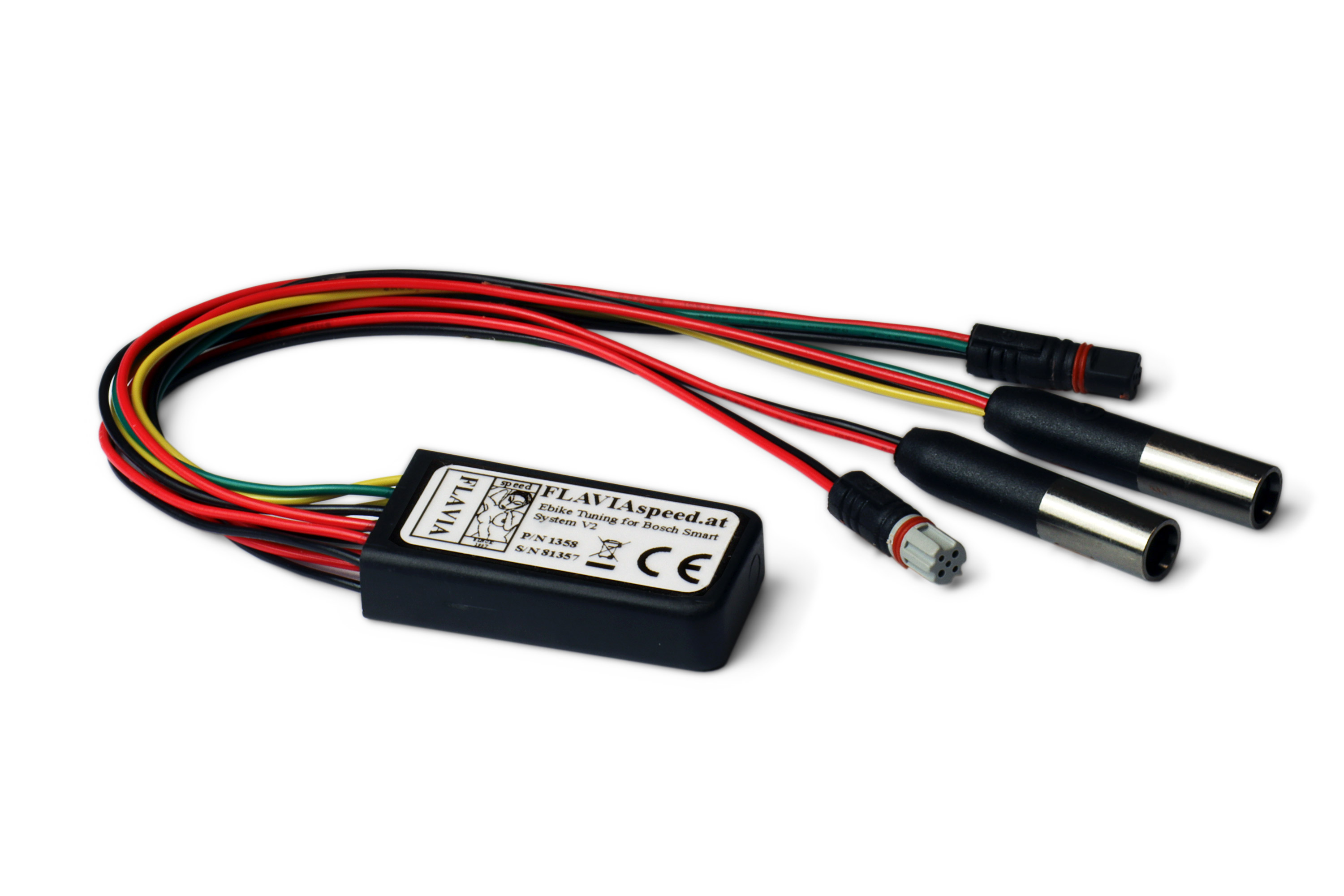

The module is mounted externally on the motor. Installation takes about 15 minutes. No cables on the motor are damaged or modified, the module is simply plugged in and ready to use. The module is waterproof, and the entire electronics are sealed.

No PC or smartphone is required. All settings can be comfortably made via the display on the bike.

Functions:

Automatic initialization, ready to use immediately after installation. Tuning can be turned on and off via handlebar buttons. The speed limit can be freely adjusted between 25-45 km/h after turning on the tuning using the arrow buttons. The last setting will be saved. The tuning is always turned off when the bike is turned on. Option to adjust to a "softer speed limit behavior" (dynamic mode). This significantly mitigates the otherwise very abrupt speed limit behavior. The last setting will be saved.

When tuning is activated, a too low speed and too low distance are displayed after reaching 21 km/h. The odometer reading is therefore too low after using tuning.

Technical data:

Housing dimensions: 37mm x 19mm x 9mm Cable length: approx. 140mm Weight: 0.017kg Power consumption: 0.2W Supply voltage: 12VDC

Delivery:
Tuning module installation instructions
2 cable ties

Legal notices / product liability:

After installation of the module, the operation of the E-bike on public roads is no longer permitted. Use is only allowed on private property or designated test and race tracks. Damages caused in connection with the operation of the E-bike are no longer covered by private liability insurance after installation. Liability, warranty, and guarantee claims against the dealer or manufacturer of the E-bike are void or greatly restricted. The E-bike is subject to higher mechanical stress due to the operation at higher speeds, which it is not designed for. This results in additional safety risks. Installation and operation of the module are at your own risk. The manufacturer assumes no liability for damages related to the operation of the device. Please inform yourself about possible further technical and legal consequences before installing the device.
