Professional GSM LTE 900, 1800 + UMTS Triband 4 Port Repeater Station
Made in EU!
Repeaters are used to boost the GSM LTE900/1800 + UMTS/3G signal in areas where there is poor GSM900/1800/UMTS/3G signal.
These Repeaters are designed for marine use, with coverage up to 4000m².
Ideal for large ships / boats, yachts, cruise ships, ferries!

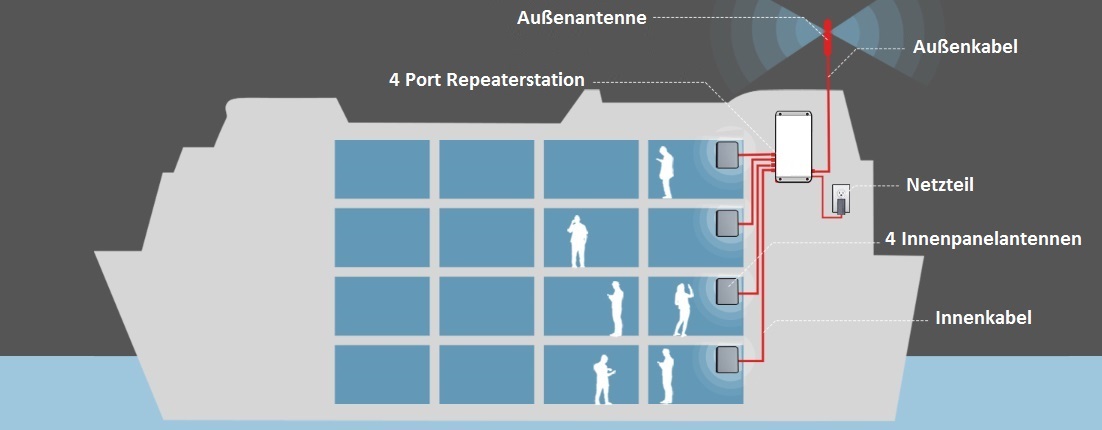

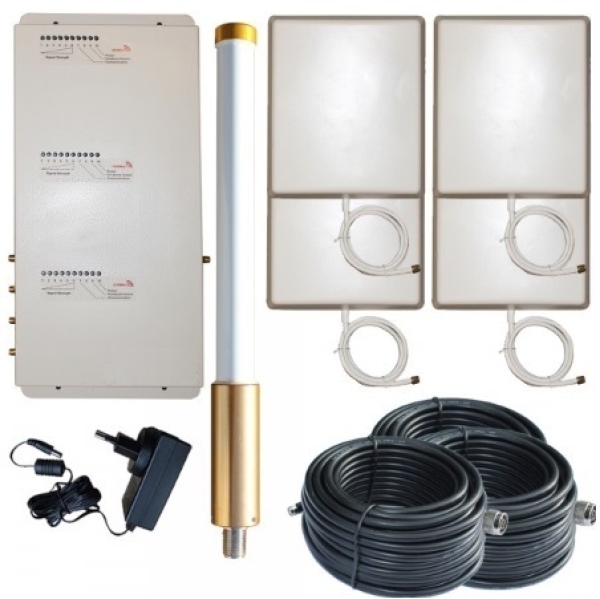

The standard Repeater kit includes an indoor mounted Repeater, and external antenna, coaxial cable, 4 indoor antennas and power supply.
Specifications:
| Frequency |
880 ‐ 960MHz
1710‐1880MHz
1920-2170MHz
|
| Coverage |
up to 4000m² (10-15 rooms) |
| User |
unlimited |
| Gain |
UP: >50dB
DL: >60dB |
| Pass ripple |
<4dB |
| Impedance |
50Ω |
| Max signal strength |
Uplink: 17dBm
Downlink: 3dBm |
| Ambient Temperature |
-30 ºC bis +70ºC |
| Oscillation Control |
automatic |
| Level control |
automatic |
| AGC range |
30dB |
| Surge protection |
SMA connectors DC grounded / 12V DC port MOV protected |
| Dimensions |
40 x 19 x 3.5cm |
| Weight |
1.2kg |
Indoor and outdoor antenna:
| Nominal gain |
6.4dBi (Indoor antenna)
4.5/5dBi (Outdoor antenna)
|
| 3dB beam Pattern |
60º x 60º (Innenantenne)
38º x 35º (Außenantenne) |
| Frequency |
790-960MHz / 1710‐2700MHz |
| VSWR |
<1.4 (Innenantenne)
<2 (Außenantenne)
|
| Front to Back Ratio |
>20dB |
| Polarisation |
vertikal |
| Power |
50W (Innenantenne)
100W (Außenantenne)
|
| Impedance |
50Ω |
| Connectors |
SMA male (Innenantenne)
N‐Female (Außenantenne) |
| Cross Pol. Discrimination |
‐20dB |
Power supply:
| AC input |
100‐240V
50‐60Hz |
| DC output |
12V
2.2A |
| Power consumption |
26W |
The device has a valid CE certificate! Please note that for the operation of repeater stations in all countries certain approval requirements must be met. We assume no liability for improper commissioning of this system! In Austria, the current legal situation stipulates that such systems must be approved by the competent telecommunications authority before they are put into operation!
