Professional LTE800 Repeater Station FLAVIA-RP-1001L with panel directional antenna
Made in EU!
Repeaters are used to boost the LTE signal in areas where there is poor LTE signal. This can happen inside buildings with solid walls or in underground basements / garages.
The Antenna installed on the roof outside will collect the cell tower signal and send it down the cable to the repeater. The repeater then amplifies this signal and re-transmits it into the room where you want coverage.
These Repeaters are designed for residential use, with coverage up to 1000m².
2000m² are possible with a splitter and additional indoor antenna!

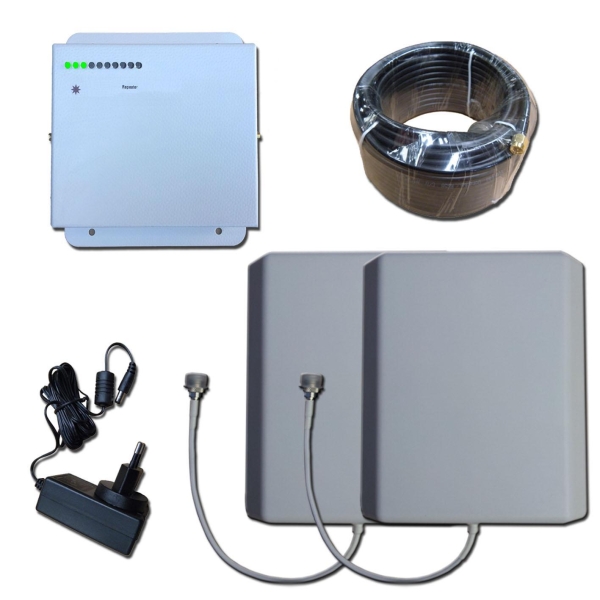

The standard Repeater kit includes an indoor mounted Repeater, and external panel antenna, 12m coaxial cable, the indoor panel antenna and power supply.
Repeater Specifications:
- Frequency: 791-862MHz
- Coverage: 1000m²
- No. of people: >100
- Gain: Uplink Gp >50dB / Downlink Gp >60dB
- Pass band ripple: <4dB
- I/O impedance: 50 ohm/N connector
- Max uplink signal strength: 17dBm
- Max downlink signal strength: 10dBm
- Ambient Temperature: -30 ºC bis +70ºC
- Power supply input: 110 ‐ 240V AC
- Power supply output: 12V DC
- Oscillation Control: Automatic
- Level control: Automatic
- AGC range: 30dB
- Surge protection: SMA connectors DC grounded / 12V DC port MOV protected
- Dimensions: 16 x 15 x 3.5cm
- Weight: 0,6kg.
Indoor and Outdoor antenna Specifications:
- Nominal Gain: 6.4dBi (Indoor) 9.4dBi (Outdoor)
- 3dB beam Pattern: 60º x 60º
- Bandwidth: 791-862MHz
- VSWR: <1.4
- Front to Back Ratio: >20dB
- Polarization: vertical
- Power Rating: 50W
- Impedance: 50Ω
- Termination: SMA male (Indoor Antenna) / N‐Female (Outdoor Antenna)
- Cross Pol. Discrimination: ‐20dB
- Dimensions: 210 x 180 x 43mm
- Weight: 0.68kg
- Rated wind velocity: 126km/hr
- Working temperature: ‐40°C bis +65°C.
Power Supply Specifications:
- AC input: 100‐240V / 0.5A / 50‐60Hz
- DC output: 12V / 1.25A max / 30W Max
- Typical power usage: 6W.
The device has a valid CE certificate! Please note that for the operation of repeater stations in all countries certain approval requirements must be met. We assume no liability for improper commissioning of this system! In Austria, the current legal situation stipulates that such systems must be approved by the competent telecommunications authority before they are put into operation!
